CAS and DME on Bench

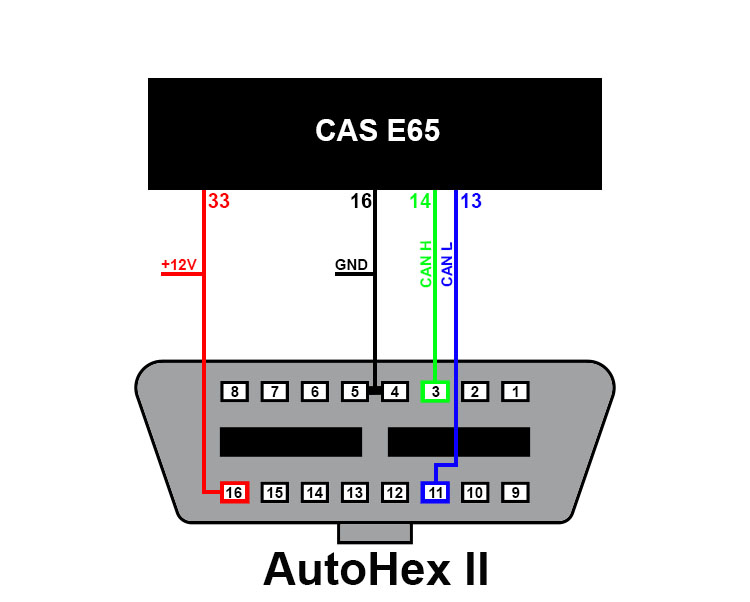

Wiring diagram for CAS E65

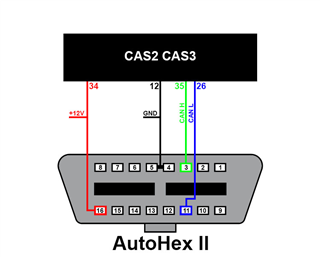

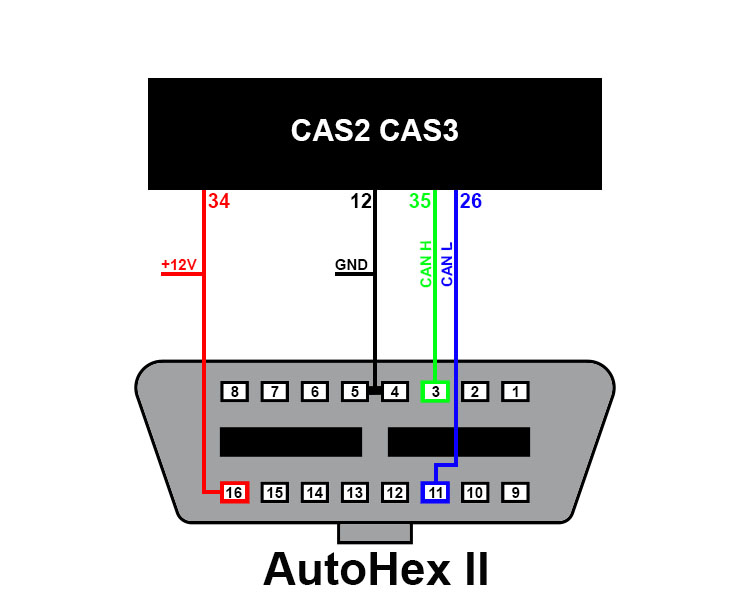

Wiring diagram for CAS2,CAS3 and CAS3+

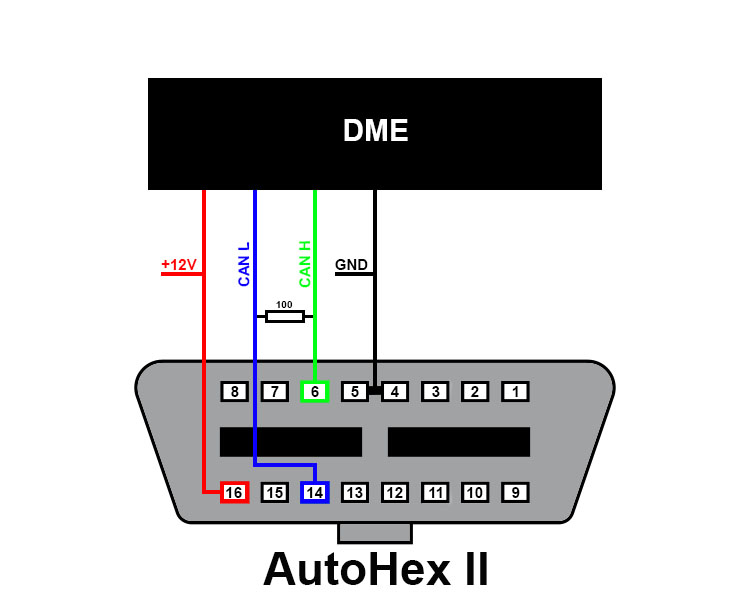

Wiring diagram for DME connection

Autohex II with hardware version 2 can communicate with CAS and DME on bench.

You can do wiring as described in below wiring diagrams to have a full connection for both CAS and DME, or one of them.

Please note that you will need a resistor of a value between 80 to 120 ohms between CANH and CANL for DME only,while it is not required for CAS wiring.
